processing capacity:150-1200kg/H
Application scope:candy, chewing gum
Product introduction: This fully-automatic xylitol chewing gum making machine consists of mixer, extruder, six roller tablet, forming machine, cooling tunnel, automatic screening machine, gum base oven and coating machine.
Automatic Xylitol chewing gum production line
Automatic Xylitol chewing gum making machine
This fully-automatic xylitol chewing gum making equipment consists of mixer, extruder, six roller tablet, forming machine, cooling tunnel, automatic screening machine, gum base oven and coating machine. This machine features in reliable performance, simple and flexible operation, high automation. It is one of the good choices for producing xylitol chewing gum candy.
Process flow chart of xylitol chewing gum Production Line
mixer-extruder-six roller tablet-forming machine-cooling tunnel-automatic screening machine-gum base oven-coating machine
Main Technical Parameters For Xylitol chewing gum making machine
Capacity:500-600(kg/h)
Adjustable range for candy:Bean Shape:6mm-22mm;Rectangle Shape:6mm-30mm,Circular shape:6mm-22mm
Dimension:22000x1800x1750 mm
Gross power:75 kw
Power supply:380V/50HZ 200V-240V/60HZ
Gross weight:11000 kg
Main component equipment
Main component equipment of chewing gum production line
Extruder(single color)
The device is used to chewing Gum. The hopper is made of stainless steel, and the extruder head is made of high-hardness steel and coated with teflon. The extruder head is insulated by hot water circulation, which can ensure the temperature and softness of the rubber base, and ensure that it is easy to extrude without cracks.
Forming machine
Power:1.5kw
Dimensions:1320*950*1600mm
Machine weight:400kg
The forming machine produces chewing Gum in a variety of sizes according to customer requirements.

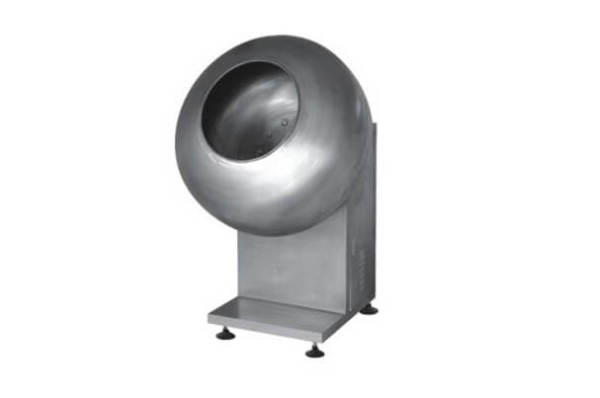

Coating machine is composed of frame,worm gear box,icing pan,heating device,fan,electric appliance and other parts.lt is driven by an electric motor through a triangular belt to drive the worm wheel and then rotate the pan. Under the action of centrifugal force, the material is rolled up and down in the pan to achieve the effect of mixing, pelting and polishing.
Cooling Tunnel
Cooling Tunnel(600)
Power:20kw
Dimensions:8850*1900*1850mm
Machine weight:2500kg
Cooling Tunnel(800)
Power:22kw
Dimensions:8850*2100*1850mm
Machine weight:2700kg
Mixer machine
This machine is designed to mix chewing Gum raw materials and features a high efficiency.
Mixer(100)
Power:20kw
Dimensions:2300*860*1550mm
Machine weight:1500kg
Mixer(200)
Power:24kw
Dimensions:2650*1000*1650mm
Machine weight:2000kg
Gum base oven
Power:18kw
Dimensions:1600*600*1700mm
Machine weight:300kg
Jelly Filled Forming Machine
Power:2.2kw
Dimensions:1200*1200*1300mm
Machine weight:650kg
