Automatic chewing gum production line

1.Automatic chewing gum production line

  Automatic chewing gum making machine can produce round, spherical, square, rectangular, piece shape and other chewing gum, chewing gum making machine is reliable flexible and simple operation high degree of automation.

Automatic chewing gum production line

Main Technical Parameters For Production Line

Capacity:20-1200(kg/h)

Adjustable range for candy:Bean Shape ：6mm-22mm;Rectangle Shape：6mm-30mm,Circular shape:6mm-22mm

Dimension:22000x1800x1750mm

Gross power:75 kw

Power supply:380V/50HZ 200V-240V/60HZ

Process flow chart of chewing gum Production Line

   mixer-extruder-six roller tablet-forming machine-cooling tunnel-automatic screening machine-gum base oven-coating machine

This fully-automatic chewing gum production line consists of mixer, extruder, six roller tablet, forming machine, cooling tunnel, automatic screening machine, gum base oven and coating machine. It can produce different shapes of chewing gum, such as Circular shape,Ball shape,square, rectangular, tablet etc. This machine features in reliable performance, simple and flexible operation, high automation. It is one of the good choices for producing chewing gum candy.

Gross weight:11000kg

Technical Parameters For Each Machine

Automatic feeding/Dust Cleaning/ Crushing Machine:Power:17kw,Dimension:3500x1300x2200mm,Weight:400kg

Gum Base oven:Power:18kw,Dimension:1600x600x1700mm,Weight:300kg

Mixer-100L:Power: 20 kw,Dimension:2300x860x1550mm,Weight:1500kg

Mixer-200L:Power: 24 kw,Dimension:2650x1000x1650mm,Weight:2000kg

Extruder -One Color:Power: 15kw,Dimension:2500x900x1500mm,Weight:1000kg

Extruder -Two Color:Power:22 kw,Dimension:2600x1150x1500mm,Weight:2200kg

Six Roller Tablet:Power:5 kw,Dimension:5100x950x1880mm,Weight:2000kg

Forming Machine:Power:2.2 kw,Dimension:1800x780x1650mm,Weight:800kg

Cooling Tunnel-600 Width:Power:20 kw,Dimension:8850x1900x1850mm,Weight:2500kg

Cooling Tunnel-800 Width:Power:22 kw,Dimension:8850x2100x1850mm,Weight:2700kg

Automatic Screening Machine:Power:3 kw,Dimension:2200x1000x1400mm,Weight:350kg

Coating Machine:Power:2 kw,Dimension:1050x1050x1600mm,Weight:350kg

2.Central-filling Ball chewing gum making machine

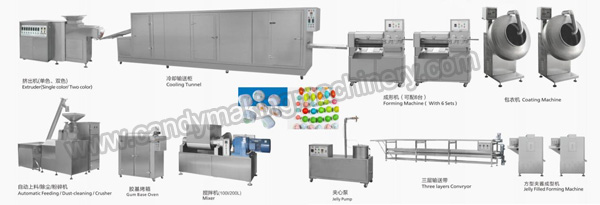

Central-filling Ball chewing gum making machine

Main Technical Parameters For making machine

Capacity:400-650(kg/h)

Diameter of candy:10-25mm

Dimension:15000x4000x1500mm

Gross power:82kw

Power supply:380V

Gross weight:8850kg

    Central-filling Ball chewing gum making machine is composed by mixer, extruder, cooling tunnel/3 layers conveyor, forming machine (6 sets), coating machine, jelly filled forming machine and gum base oven. It can be produced hollow, powder filling or jelly filling candy in the shapes of balls, strawberry, oval, column, and so on.

Process flow chart of Round Bubble Gum making machine

   mixer-extruder-cooling tunnel/3 layers conveyor-forming machine-coating machine-jelly filled forming machine-gum base oven

Technical Parameters For Each Machine

Automatic feeding/Dust Cleaning/ Crushing Machine:Power:17kw,Dimension:3500x1300x2200mm,Weight:400kg

Gum Base oven:Power:18kw,Dimension:1600x600x1700mm,Weight:300kg

Mixer-100L:Power:20kw,Dimension:2300x860x1550mm,Weight:1500kg

Mixer-200L:Power:24kw,Dimension:2650x1000x1650mm,Weight:2000kg

Extruder-One Color:Power:15kw,Dimension:2500x900x1500mm,Weight:1000kg

Extruder-Two Color:Power:22kw,Dimension:2600x1150x1500mm,Weight:2200kg

Jelly Pump:Power:3kw,Dimension:1600x550x1650mm,Weight:300kg

Cooling Tunnel-600:Power:20kw,Dimension:8850x1900x1850mm,Weight:2500kg

Cooling Tunnel-800:Power:22kw,Dimension:8850x2100x1850mm,Weight:2700kg

Three layers Convryor:Power:2.3kw,Dimension:10500x900x1450mm,Weight:300kg

Forming Machine:Power:1.5kw,Dimension:1320x950x1600mm,Weight:400kg

Jelly Filled Forming Machine:Power:2.2kw,Dimension:1200x1200x1300mm,Weight:650kg

Coating machine:Power:2kw,Dimension:1050x1050x1600mm,Weight:350kg

3.Automatic square chewing gum making equipment

Automatic square chewing gum making equipment

Process flow chart of Automatic chewing gum Production Line

   Automatic feeding/dust cleaning/crushing machine-mixer-extruder-cooling tunnel-block cutting pillow packing machine-low temperature double vacuum cooker-gum base oven

Main Technical Parameters For Production Line

Capacity:750-850(kg/h)

 Power Supply:380V

Gross Power:143kw

Dimension:17300X5500X1800mm

Adjustable Range for Candy:18-80mm

Gross Weight:15000kg

Technical Parameters For Each Machine

Automatic feeding/Dust Cleaning/Crushing Machine:Main power:17kw,Dimensions:3500x1300x2200mm,Weight:400kg.

Mixer-100L:Main power:20kw,Dimensions:2300x860x1550mm,Weight:1500kg

Mixer-200L:Main power:24kw,Dimensions:2650x1000x1650mm ,Weight:2000kg

Extruder-One Color: Main power:15kw ,Dimensions:2500x900x1500mm ,Weight:1000kg

Extruder-Two Color:Main power: 22kw  ,Dimensions:2600x1150x1500mm ,Weight: 2200kg

Jelly Pump:Main power:3kw,Dimensions:1600x550x1650mm,Weight:300kg

Cooling Tunnel-600:Main power:20kw,Dimensions:8850x1900x1850mm,Weight: 2500kg

Cooling Tunnel-800:Main power::22kw,Dimensions:8850x2100x1850mm ,Weight:2700kg

Block Cutting Pillow Packing Machine (Sets):Main power:4kw,Dimensions:2150x900x1500mm,Weight:980kg

Low Temperature Double Vacuum Cooker:Main power: 29kw,Dimensions: 3300x1600x3200mm ,Weight: 2500kg

Gum Base oven:Main power:18kw,Dimensions:1600x600x1700mm ,Weight: 300kg

   Main Performance

   Automatic Bubble Gum Production Line is an automatic production line integrates forming, cutting and packing for square chewing gum,square shapes of tablet chewing gum, rectangle chewing gum,circular chewing gum,filled chewing gum that. It takes the advantages of high production efficiency and low defect rate. It can produce all kinds of shapes and specifications products as customers* requirement. For example, chewing gum and square shapes of tablet, rectangle and circular with center Ailed, colors filled and so on.

Main component equipment of chewing gum production line

Extruder(single color)

  The device is used to chewing Gum. The hopper is made of stainless steel, and the extruder head is made of high-hardness steel and coated with teflon. The extruder head is insulated by hot water circulation, which can ensure the temperature and softness of the rubber base, and ensure that it is easy to extrude without cracks.

Forming machine

Power:1.5kw

Dimensions:1320*950*1600mm

Machine weight:400kg

The forming machine produces chewing Gum in a variety of sizes according to customer requirements.

Coating machine is composed of frame,worm gear box,icing pan,heating device,fan,electric appliance and other parts.lt is driven by an electric motor through a triangular belt to drive the worm wheel and then rotate the pan. Under the action of centrifugal force, the material is rolled up and down in the pan to achieve the effect of mixing, pelting and polishing.

Cooling Tunnel

Cooling Tunnel(600)

Power:20kw

Dimensions:8850*1900*1850mm

Machine weight:2500kg

Cooling Tunnel(800)

Power:22kw

Dimensions:8850*2100*1850mm

Machine weight:2700kg

Mixer machine

This machine is designed to mix chewing Gum raw materials and features a high efficiency.

Mixer(100)

Power:20kw

Dimensions:2300*860*1550mm

Machine weight:1500kg

Mixer(200)

Power:24kw

Dimensions:2650*1000*1650mm

Machine weight:2000kg

Gum base oven

Power:18kw

Dimensions:1600*600*1700mm

Machine weight:300kg

Jelly Filled Forming Machine

Power:2.2kw

Dimensions:1200*1200*1300mm

Machine weight:650kg
