Candy production line
Candy production line is divided into gummy candy making machine, hard candy making machine, toffee making machine, lollipop making equipment, chewing gum candy production line, bubble gum production line, chocolate production line, popping boba production line etc., The candy production line integrates mechanical and electrical, PLC control system, compact structure, high degree of automation.
The processing technology of candy production line is divided into depositing candy technology, die-forming candy technology and extrude candy technology
Depositing candy making machine can make gummy candy, hard candy, lollipop, toffee, etc., the die-forming candy making machine can make gummy, hard candy, lollipop, toffee, etc., the extrude candy making machine can make toffee, milk candy, hard candy, chewing gum, bubble gum, etc
Depositing candy making machine
Process flow of depositing candy processing machine: sugar dissolving -- filtration -- sugar boiling -- additive (optional) -- depositing molding -- cooling -- film stripping -- drying room -- packaging -- packing
Die-forming candy making machine
Process flow of die-forming candy making machine: Sugar melting cooker-Storage tank-Vacuum sugar cooking machine-Cooling table-Center filling machine-Batch roller-Rope sizer-Candy forming machine-Cooling sifter-packaging machine
Extruder candy making machine
Sugar melting cooker - sugar boiling machine - cooling plate - extruder - strip dividing machine - molding machine - cooling machine
1.Gummy making machine
Gummy candy production line
Equipment process of Gummy candy production line: sugar dissolving -- filtration -- sugar boiling -- additive (optional) -- casting -- cooling -- film stripping -- drying room -- packaging -- packing
The automatic gel gummy production line equipment can produce fudge from gelatin, pectin, carrageenan, agar, etc. The gel fudge pouring line is manufactured according to the standard, and the product quality is stable. Different types of Gummy candy can be produced by changing different configurations, such as single color Gummy candy, double color Gummy candy, Gummy candy with stripes, etc.
Gummy candy production line
The full-automatic PLC controlled gel Gummy candy production line equipment can meet the needs of gel Gummy candy in various shapes and colors. It is a continuous production of colloidal candy equipment. Monochrome and bicolor sugar can be produced; It can also produce gel gums of various shapes and colors by changing the mold or pouring head. Complete the quantitative injection and mixing of essence pigment acid online; Automatic production can not only produce products with stable quality, but also save manpower and space.
2.Hard candy making machine
1) Process flow of depositing hard candy production line: dissolving sugar - conveying, filtering, temporary storage, quantitative transmission, syrup - preheating, film, vacuum boiling, unloading, online mixing of essence, pigment, syrup - content - depositing - cooling - demoulding - conveying - packaging - finished product
depositing hard candy production line
The hard candy depositing production line is a continuous vacuum thin film hard candy production line. The equipment integrates mechanical, electrical and control systems, which is easy to operate, compact in structure and automation. The continuous vacuum film depositing production line can not only produce transparent crystal sugar, double-color sugar, double-layer double-flavor sugar, sandwich sugar, but also produce colorful and multi-flavor candy such as spiral spray candy.
-Design and manufacture of sanitary structure to meet GMP production requirements;
-PLC automatic programming control vacuum sugar boiling temperature, time, pouring temperature and pouring speed;
-LED touch screen display process flow, easy to operate;
-Complete the quantitative injection and mixing of essence, pigment and acid liquid online;
-Conveying chain belt, cooling system and double demoulding mechanism ensure demoulding;
-Various shapes of candy can be produced according to different molds;
-The optional chocolate quantitative filling system can produce chocolate sandwich candy.
-The production capacity of series products can range from 50 kg to 1200 kg per hour;
-Variable frequency speed control of sugar liquid flow, accurate flow, stable quality of sugar paste;
-The dynamic mixer completes the quantitative filling and mixing of essence, pigment and acid liquid online;
-Replace some devices and molds, and the production line can produce spherical and flat three-dimensional bars
2) The process flow of the fully automatic hard candy production line of die-forming: sugar melting - storage tank - vacuum boiling pot - cooling table - conveyor - heat preservation roller - drawing machine - candy forming machine - cooling screen - packaging machine
Full-automatic hard candy die production line can produce all kinds of solid hard candy, sandwich hard candy, special-shaped hard candy, color hard candy and other hard candy
Vacuum continuous saccharification ensures the quality of the cream. The unique molding method makes the sandwich effect good.
The production capacity can reach 200-1000 kilograms per hour. Synchronous automatic control, sandwich, uniform strip and molding. Different shapes of candy can be produced by changing the mold.
The conveying cooling system ensures the cooling effect of candy. It can produce spherical lollipops with automatic bract molding machine.
3.toffee making machine
1) Full-automatic depositing toffee making machine
Full-automatic toffee depositing production line can produce single color, double color and sandwich toffee; It can also produce various shapes and types of toffee by changing the mold and supporting the release device. Automatic production can not only produce products with stable quality, but also save manpower and space to reduce production costs.
Process flow of toffee depositing making machine
Sugar melting pot - sugar storage tank - toffee boiling pot - depositing machine - cooling tunnel
characteristic
Mitsubishi PLC system is used to automatically control the time, temperature, depositing speed and depositing temperature of sugar boiling
The 10.7-inch touch screen can display the working status, temperature, depositing speed and other parameters of all parts of the production line, making it easier for users to operate
Frequency control is adopted to control the flow of syrup to ensure the product quality
The dynamic mixer completes the quantitative filling and mixing of essence, pigment and acid liquid online
Optional chocolate quantitative filling system can produce chocolate sandwich toffee
Various shapes of candy can be produced according to different molds
Non-standard machines can be determined according to customers' site requirements
2) Full-automatic die-forming toffee making equipment
Characteristics of die-forming toffee making equipment
The chain molding machine has a fast stamping speed and a sandwich content of more than 30%. The batch boiling machine is equipped with a cooling drum, and the boiling pressure can reach 8kg. The chain stamping mold can be replaced without pressure in five minutes. It can be used with different boiling equipment to produce other stamping products. Mature processing technology and convenient spare parts replacement can be used to customize the production line to completely suit your operation.
Process flow of toffee production line
Sugar melting (electric heating sugar boiling pot) - storage tank - vacuum aerated mixing milk sugar boiling machine (mixer) - cooling table - pulp conveyor - insulation roller bed - brace machine - conveyor belt - candy forming machine - cooling screen - packaging machine
4.lollipop making machine
The lollipop production line includes die-forming lollipop making machine and depositing lollipop making machine
1) Full-automatic die-forming lollipop production line
The lollipop die-forming production line can produce lollipops of different shapes by changing the mold, and the production capacity can reach 50-1200 kg/h. If your factory needs to produce lollipops of different shapes in large quantities, the lollipop die production line is your choice. The lollipop die production line adopts electric heating boiling pot, and PLC controls the heating time and temperature to ensure the transparency and taste of sugar. Equipped with a lollipop punch can reduce the generation of waste and save you more costs. We have rich experience in candy production line manufacturing. We can not only customize the candy production line according to your needs, but also provide you with corresponding molds.
Processing flow of automatic die-forming lollipop production line
Sugar melting pot - sugar storage tank - vacuum continuous sugar boiling pot - cooling table - insulation roller bed - strip homogenizer - die forming machine - shaking head distributor - refrigerator - packaging machine
Machine features
Computer control vacuum sugar boiling temperature, time, pouring temperature and pouring speed
10.7-inch touch screen displays process flow diagram, working status of each part, temperature, pouring speed and other parameters
The accurate flow of sugar liquid is controlled by frequency conversion and speed regulation, and the quality of sugar paste is stable
Various shapes of candy can be produced according to different molds
Replace some devices and molds, the production line can produce spherical and flat three-dimensional lollipops
2) Full-automatic depositing lollipop production line
The depositing lollipop production line can produce lollipops of various colors, and can provide layering and stripe options for spherical and bicolor spherical shapes. Compared with the die production line, the pouring production line produces candy with smoother surface and more labor saving, which is suitable for those who need to produce lollipops in large quantities. The continuous lollipop pouring production line is the pouring production equipment mainly used for lollipop. The equipment integrates machine, electricity, steam and automatic control. It has many characteristics, such as good candy quality, multiple varieties, simple operation, compact structure and automation. The continuous lollipop pouring production line can not only produce single-color lollipop, spray lollipop, sandwich lollipop, but also produce a variety of color and flavor products such as double-ball conjoined lollipop by adding pouring heads
Processing flow of depositing lollipop production line
Sugar melting pot - sugar storage tank - pouring machine - cooling tunnel

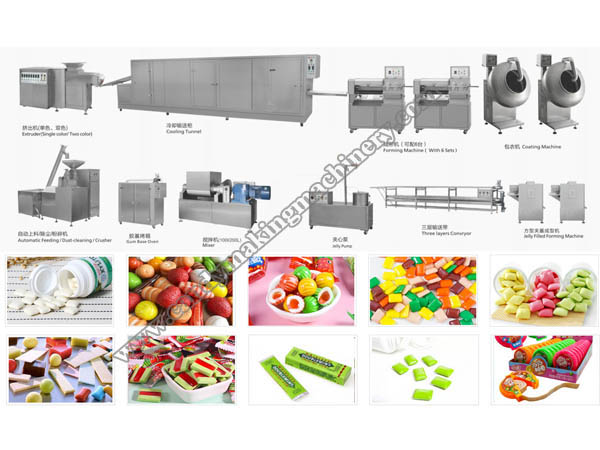

5.chewing gum production line
The full-automatic chewing gum production line can produce round, spherical, square, rectangular, sheet and other shapes of chewing gum. The chewing gum production machine is reliable, flexible, simple and automatic.
Automatic chewing gum production line
The automatic chewing gum production line is composed of a mixer, an extruder, a six-pass flattening machine, a forming machine, a cooling conveyor cabinet, an automatic granulator, a glue-based oven and a coating machine. It can produce various shapes of chewing gum (such as round, spherical, square, rectangular, sheet, etc.). The whole machine is reliable in production, flexible and convenient in operation, and automatic. It is a chewing gum processing equipment.
Process flow of automatic chewing gum production line
Mixer - extruder - six passes of flattening - forming machine - cooling conveyor cabinet - automatic granulator - rubber base - oven - coating machine - packaging machine

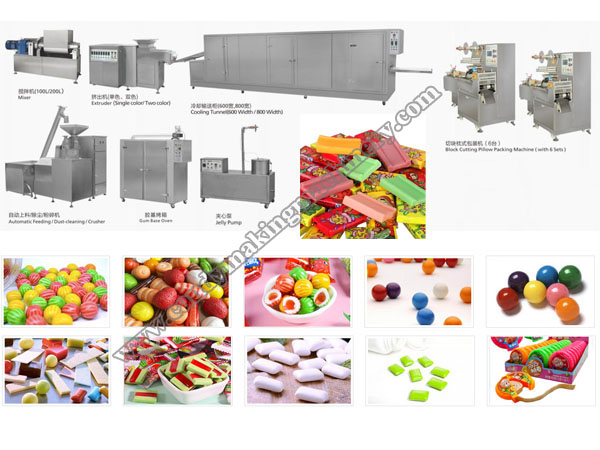

6.Bubble gum making machine
Bubble gum making machine
Full-automatic bubble gum making machine can produce spherical bubble gum, square bubble gum, special-shaped bubble gum, sandwich bubble gum and other forms of bubble gum. The whole production line consists of a mixer, an extruder, a cooling conveyor cabinet, a three-layer conveyor belt, a molding machine, and a sugar coating machine
Main performance of automatic bubble gum making machine
Full-automatic bubble gum making machine is an automatic production line integrating shape, cutting and packaging. It is applicable to the forming, cutting and packaging of milk sugar, bubble gum and toffee. It has the characteristics of high production efficiency and less secondary sugar. We can produce products of various shapes and specifications according to customers' requirements. Such as chewing gum, Swiss candy slice, rectangle, round paste, color, sandwich, etc.
Process flow of automatic bubble gum making machine
Automatic feeding/dust removal/pulverizer - blender - extruder - cooling conveyor cabinet - block pillow packing machine - low temperature double vacuum aerated mixing pot - rubber oven
7.chocolate production line
Chocolate production line
The automatic chocolate production line includes the casting chocolate block production line, the stamping chocolate candy production line, the extrusion chocolate bean production line, the machine for making chocolate candy chocolate energy bar, the chocolate block chocolate Snicker frame chocolate bean, and the automatic single-head, double-head and three-head chocolate casting production line
Main purpose
Chocolate depositing molding machine is a machine used to produce chocolate products. The machine integrates mold drying, depositing, oscillation, scraping, mold turning, cooling, mold stripping, and conveying processes, and PLC fully automatic control. It can produce pure chocolate, shell sandwich and double color chocolate products. Two or three heads can work independently or simultaneously.
8.Popping boba production line
Full-automatic popping boba production line (full-automatic konjac flour popping boba production line)
The automatic popping boba production line adopts PLC program and touch screen, which is easy to operate and accurately control the size of the popping boba crystal ball head. A full range of SUS304 stainless steel supports customization, workshop planning and installation from engineers to factories.
Model: ZY50, output/hour: 20-50kg, machine weight: 2000kg
Model: ZY100, output/hour: 50-100kg, machine weight: 2200kg
Model: ZY200, output/hour: 200-300kg, machine weight: 3000kg
Model: ZY500, output/hour: 400-600kg, machine weight: 3800kg
Model: customized output according to customer demand
Product features and use:
The complete set of equipment of the automatic popping boba production line includes the hopper, SUS pot, flushing system, cleaning system, etc. The whole production line is mainly made of stainless steel, which is widely used in milk tea, catering, caviar and other industries
Biscuit Production Line
Biscuit Production Line
As a professional manufacturer with more than two decades of experience, TG Machine employs a group of industry experts to customize the best biscuit production lines to meet specific customer needs. We are proud to offer reliable and high-quality solutions.
Confectionery candy production line quality requirements
Whether the candy production line is a qualified candy making machine can be measured according to the quality of the candy processed by the candy production line. The quality of candy can be tested from the shape, appearance, color, aroma, taste and hardness of candy.
Shape and appearance
1. Whether the shape of the candy is complete, whether each candy produced is the same size and weight, and whether the candy as a whole has no defects.
2. Whether the surface of the candy is smooth without concave and convex, whether the color is uniform, and whether the nature and thickness are consistent and not tilted. If it is filled with candy, whether there is juice missing.
3. If candy is coated with sugar, the sand should be evenly attached; Without sugar, the surface should be smooth and bright. The color of candy should be bright and uniform, and there should be obvious color to distinguish other varieties.
